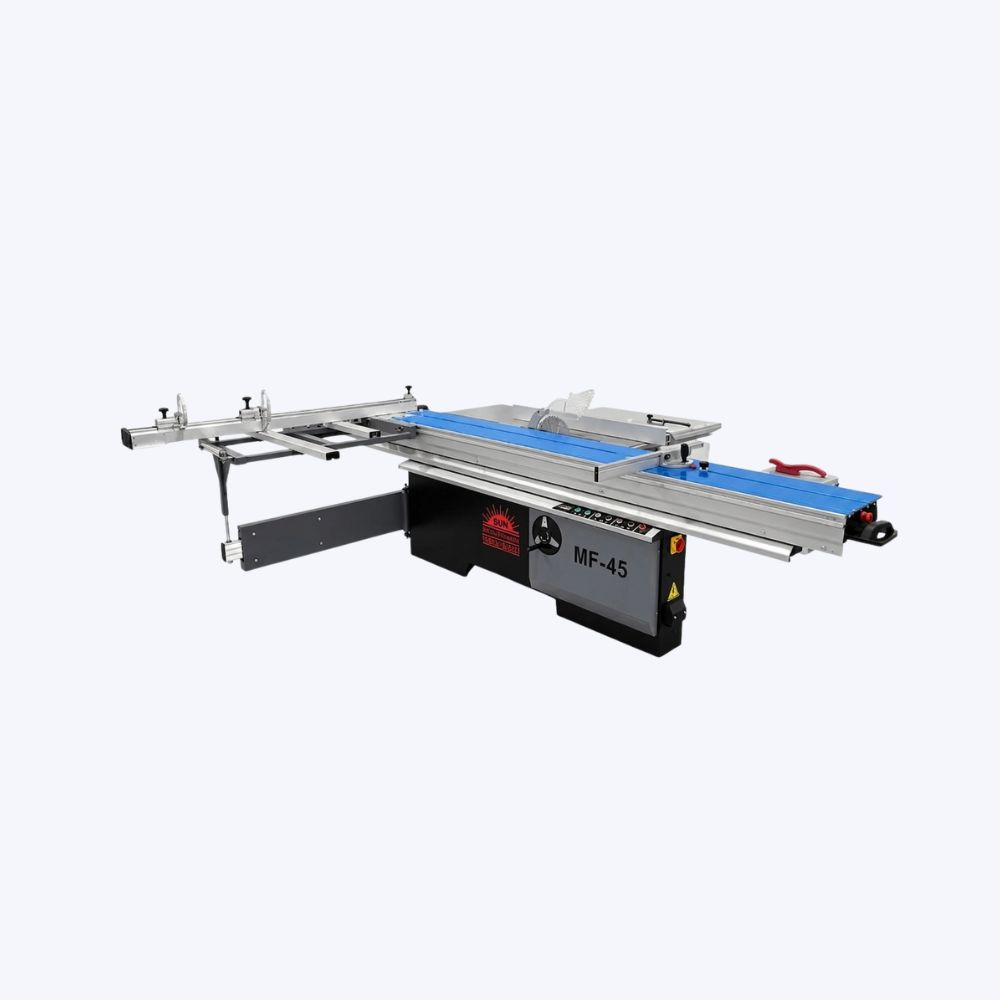

Sliding Table Saw Model: Sun - MF 45
Sliding Table Saw
Model: Sun - MF 45
The SUN MF-45 Sliding Table Saw delivers precise panel cutting, sizing, and straight-line ripping with a heavy-duty frame and precision sliding table, ensuring smooth operation, accurate cuts, and high productivity for professional woodworking.
Interested in our CNC router machine?
Contact us at +91 9876543210 to schedule your CNC router machine.
About Us
Trusted CNC Router Machines Manufacturer in India
The SUN MF-45 Sliding Table Saw is designed to deliver exceptional accuracy, stability, and efficiency for modern woodworking industries. Built with a rigid steel frame, precision guide rails, and premium components, it provides reliable performance for continuous industrial production.
Ideal for cutting plywood, MDF, particle board, laminates, solid wood, and decorative panels, the MF-45 features a precision sliding table, adjustable blade angle, and powerful motor to ensure clean, burr-free cuts with minimal material waste. It is the perfect solution for furniture manufacturers, cabinet makers, and modular kitchen industries.
Accurate Panel Processing
The precision sliding table and high-speed saw blade deliver clean, straight, and accurate cuts for plywood, MDF, laminates, and solid wood panels.
Built for Continuous Production
Manufactured with a robust steel body, premium guide rails, and industrial-grade components to ensure long-lasting durability, low maintenance, and consistent cutting performance.
Product Specifications
| Dimensons | Description |
|---|---|
| Prouduct Name | MF-45 Sliding Table Saw |
| Saw Blade Lifting Mode | Electric Lift |
| Saw Blade Angle | 45 Deg.-90 Deg. |
| Main Saw Power | 7.5 hp |
| Auxiliary Saw Power | 1.25hp |
| Slide Table Size | 3200 390mm |
| Maximum Sawing Length | 3100mm |
| Maximum Cutting Width | 1250mm |
| Maximum Sawing Thickness | 80mm |
| Main Saw Shaft Speed | 4000-6000r/min |
| Slot Saw Blade Rotating Speed | 7000-8000r/min |
| Main Saw Blade Size | Outer Diameter 300mm/inner Diameter 30mm |
| Slot Saw Blade Size | Outer Diameter 120mm/inner Diameter 20mm |
| Spindle Diameter | 30mm |
| Working Voltage | 1 Phase 220v 50hz / 3 Phase 380v 60 hz |
| Dimensions | 3250*1100*1200mm |
