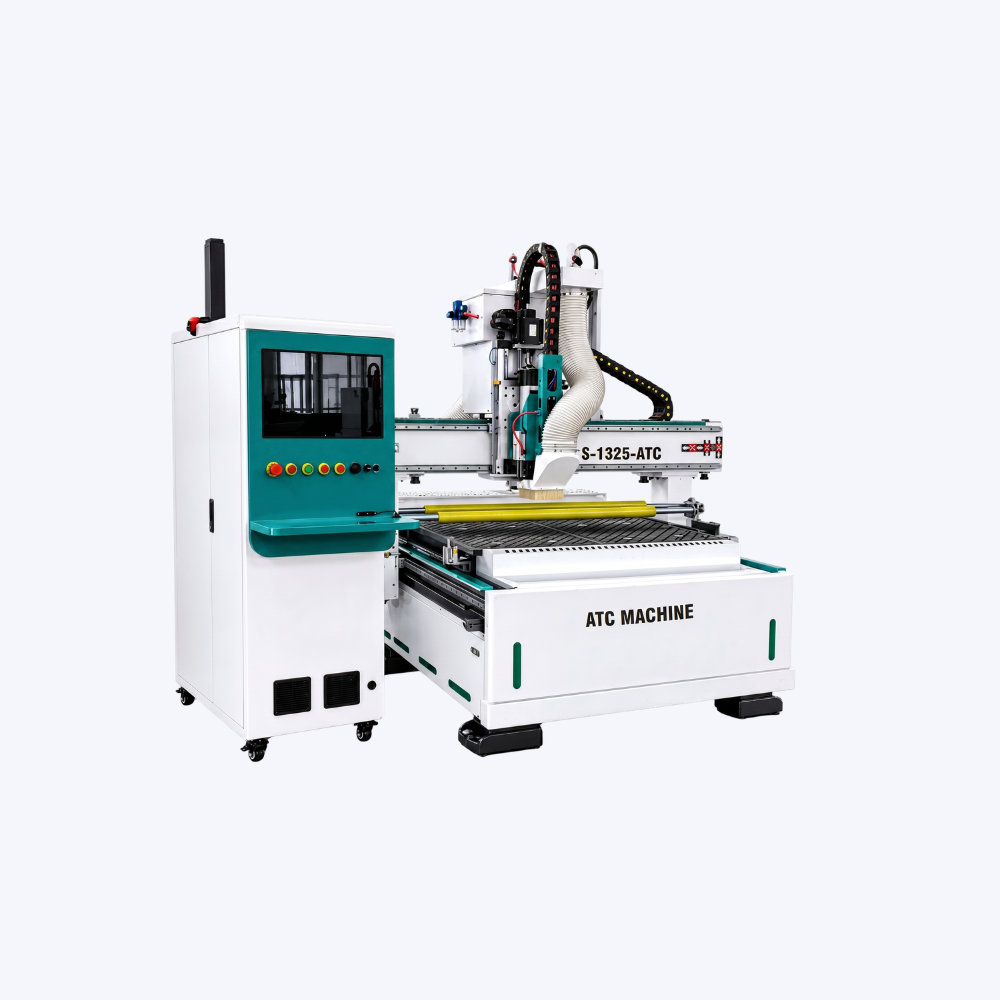

Nesting ATC Router Machine Model S -1325 ATC
Nesting ATC Router Machine
Model S -1325 ATC
The S-1325 ATC Nesting Router Machine delivers high-speed CNC cutting, nesting, drilling, and automatic tool changing with exceptional accuracy, faster production, and reliable performance for industrial woodworking applications.
Interested in our CNC router machine?
Contact us at +91 9876543210 to schedule your CNC router machine.
About Us
Trusted CNC Router Machines Manufacturer in India
The S-1325 ATC Nesting Router Machine is designed to maximize productivity, precision, and automation in modern woodworking industries. Built with a heavy-duty steel structure, advanced servo drive system, and automatic tool changer, it delivers fast, accurate, and uninterrupted machining for high-volume production.
Ideal for processing MDF, plywood, particle board, solid wood, laminates, acrylic, PVC, and composite panels, the S-1325 ATC performs cutting, drilling, grooving, engraving, and nesting operations with exceptional efficiency. It is the perfect solution for modular furniture manufacturers, cabinet makers, interior industries, and customized panel production.
Automatic Tool Changing
The intelligent ATC system changes tools automatically, minimizing downtime while improving machining speed, accuracy, and overall production efficiency.
Built for Industrial Production
Engineered with premium components, precision guide rails, and a rigid steel body to ensure long-lasting durability, smooth operation, and consistent performance.
Product Specifications
| Description | Dimension |
|---|---|
| Model | ATC 1325 |
| Working Area | 1300*2500*300mm |
| Guide Rail | Taiwan SHAC High Precision 30 square Guide Rail |
| Transmission | X,Y-Axis high Precision 1.5m helical gear , Z-axis 2510 TBI ball screw |
| Working Table | Vacuum suction table |
| Vacuum Pump | 7.5kw |
| Control System | Taiwan LNC control system, with handwheel |
| Spindle Motor | HQD ATC 9KW air-cooling spindle |
| Tool Magazine | 12 pcs , linear |
| Inverter | Folin11kw, with 1 years warranty |
| Driver Model | Z: Leadshine 1.5KW w/t break X Y : Leadshine 1.5KW |
| Reducer | Japan Shimpo for X,Y-axis |
| Machine Bed | Thick steel tube welded |
| Working Voltage | 3 phase 380V 50HZ-60HZ |
| Lubrication | Automatic oil lubrication system |
| Dust Collector | 4kw Double bags with all Tubes and Spindle Cover |
| Cables | High soft shield cable, CNC equipment dedicated cable |
| Collects | 1 set (frequently used) |
| Software | Artcam/Type3/Castmate/Wentai/UG and so on Door Professional typesetting software: Alphacam |
| Working Command | HPGL.G code.U00.Plt.Eng |
| Machine Dimension | 3400*2250*1900mm |
| Gross Weight | 2000kg |
| Packaging | Wrap packaging |
| Position Cylinder | Yes (3+2, used for board calibration) |
| Machine Training | Operation manual and video in English |
| Warranty | 1 year of all spair part of machine |
| Machine Running Speed | 100 meters/rpm |
| Machine Working Speed | 40 meters/rpm |
| Resolution | 0.05mm 30.Tool sensor: Yes |
| Push Device | Yes |
| Delivery Time | Within 5 working days after receive the deposit payment. |
