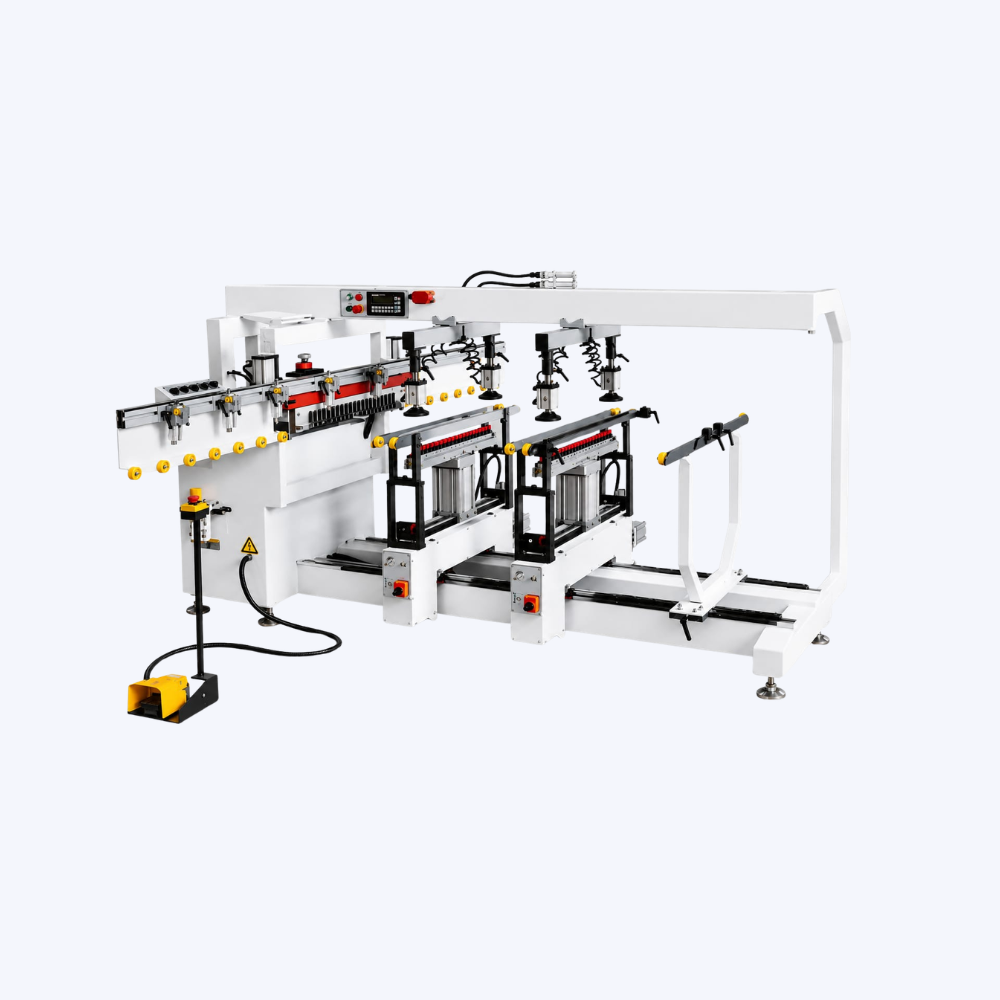

Multi Boring Row Drill 3 Head Model No. RD 3 Head
Multi Boring Row Drill 3 Head
Model No. RD 3 Head
The RD 3 Head Multi Boring Row Drill Machine delivers high-speed, precision multi-hole drilling with three independent drilling heads, ensuring fast, accurate, and consistent performance for industrial woodworking applications.
Interested in our CNC router machine?
Contact us at +91 9876543210 to schedule your CNC router machine.
About Us
Trusted CNC Router Machines Manufacturer in India
The RD 3 Head Multi Boring Row Drill Machine is engineered to deliver maximum drilling accuracy, productivity, and reliability for modern furniture manufacturing. Built with a heavy-duty steel structure, precision drilling heads, and advanced control technology, it provides smooth, consistent, and high-speed operation for continuous production.
Ideal for drilling MDF, plywood, particle board, solid wood, laminated panels, and furniture components, the RD 3 Head machine performs multiple drilling operations simultaneously, reducing production time while maintaining exceptional hole accuracy. It is the perfect solution for furniture manufacturers, cabinet makers, modular kitchen factories, and woodworking industries.
Simultaneous Multi-Hole Drilling
Three precision drilling heads perform multiple drilling operations in a single cycle, increasing productivity while ensuring consistent hole alignment and accuracy.
Built for Industrial Performance
Manufactured with premium components and a rigid steel body to deliver long-lasting durability, low maintenance, and reliable operation in high-volume production.
Product Specifications
| Dimensons | Description |
|---|---|
| Working Stroke | 2400mm |
| Maximum Drilling Diameter | 35mm |
| Maximum Drilling Depth | 60mm |
| Number Of Drilling Shafts | 21x 3 rows |
| Rotate Speed | 2800r/min |
| Motor Power | 1.5KW |
| Slope Guiding Rule Lengh | 2500mm |
| Air Pressure | 0.6-0.8MPa |
| Control Screen | Touch screen control |
| Dimension | 3400×1200×1600mm |
| Working Voltage | 1 Phase 220v 50hz / 3 Phase 380v 60 hz |
| Weight | 1200kg |
| Tools | Send 6 sets of drill bits & drill |
