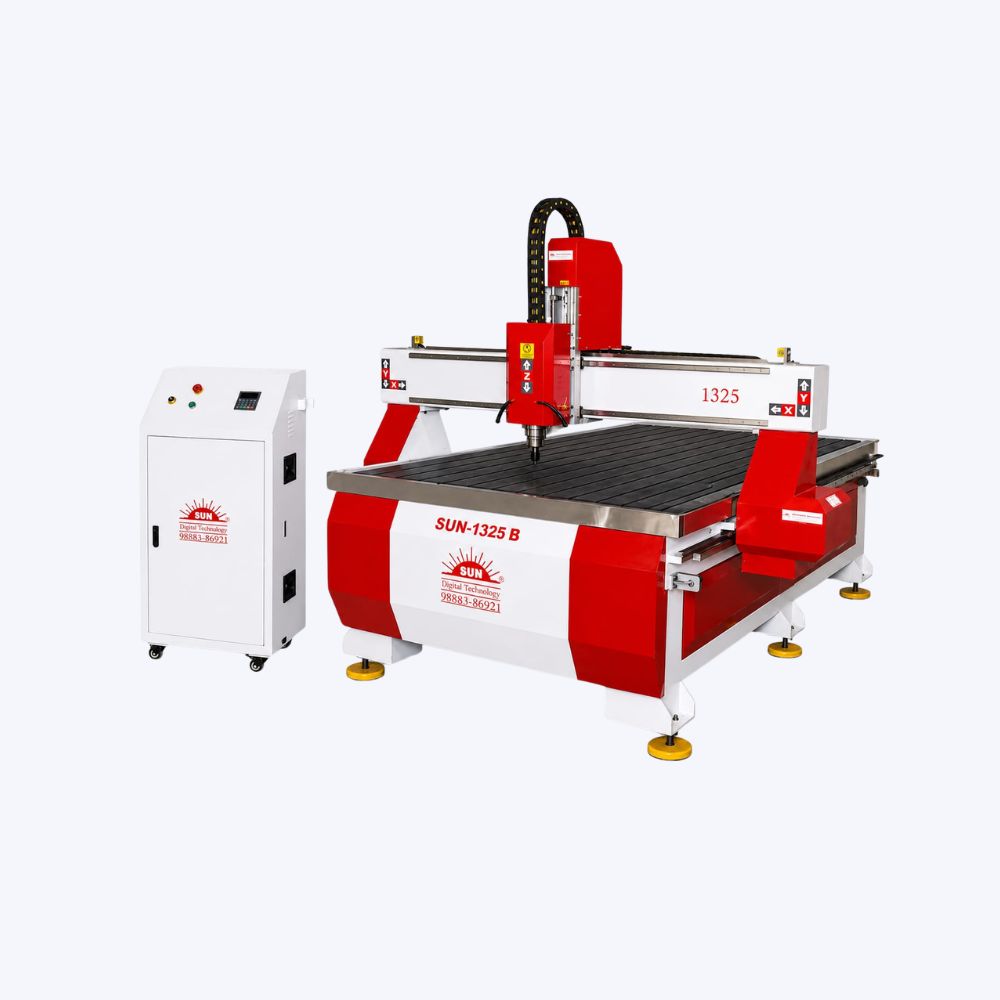

Multipurpose CNC Router Machine Model: S -1325 B+ (Plus)
Multipurpose CNC Router Machine
Model: S -1325 B+ (Plus)
The SUN S-1325 B+ (Plus) CNC Router Machine delivers high-precision cutting, engraving, and carving with excellent speed and accuracy. Ideal for wood, MDF, acrylic, ACP, PVC, aluminum, brass, copper.
Interested in our CNC router machine?
Contact us at +91 9876543210 to schedule your CNC router machine.
About Us
Trusted CNC Router Machines Manufacturer in India
SUN Digital Technology has been delivering reliable and high-performance CNC Router Machines for industries across India. Our machines are built using premium components, advanced automation technology, and precision engineering to ensure superior productivity, accuracy, and long service life.
Whether you work with wood, acrylic, MDF, ACP sheets, PVC, aluminum, brass, copper, marble, or granite, our CNC solutions are designed to handle demanding industrial applications with ease.
High-Quality Components
Our machines are manufactured using world-class components from trusted brands, ensuring long-lasting durability, smooth operation, and exceptional machining accuracy.
Customized CNC Solutions
We provide customized CNC Router Machines based on your production requirements, working area, spindle configuration, and industrial applications.
Product Specifications
| Dimensons | Description |
|---|---|
| Working Size | 8x4 = 8x5 = 10x5 Feet |
| Machine Power | 7 kw or 8.5 hp |
| Z-Transmission | Taiwan 25mm Z Ball Screw Drive with Break System-TBI |
| Table Structure | Cast Steel |
| Bed Structure | T-Slot Alluminium Table with hard pvc |
| Spindle Power | 3.2kw / 5.5kw / 6.0kw Water Cool / Air Cool HSD HQD |
| Spindle Speed | 24000 / 18000 RPM |
| Max Air Move Speed | 35000 MM/RPM |
| Max Working Speed | 30000 MM/RPM |
| XY-Transmission | Taiwan 1.25mm Helical Rank Gear XY Axis |
| Guide Rail | LM Guide Rail 20mm Made in Germany |
| Drive | Full Servo Drive |
| Motor | Full Servo Motor with Planetary Gear Box |
| Controller | Rich Auto DSP A11S |
| Main Switch | Omron Made in Germany |
| Electronics | Schneider & Siemens Made in Germany |
| Machine Accuracy | <0.01 mm |
| Inverter | Rituo & Best VDF |
| Program | G-Code Program |
| Voltage | 1 Phase 220AC / 3 Phases 380AC |
| Software | Artcam, Catcam, Autocut |
| Oil Pump | Manual Lubrication System |
| Gross Weight | 1500 kg |
| Accessories | 10 pc. Bits Spanner Full Set Adjustment Feet Screw, Full Set Spindle Nut 1 pc. 2 pc. Sensor, 2 pc. Water Pump |
