Automatic Edge Banding Machine Model: S - 368
Automatic Edge Banding Machine
Model: S - 368

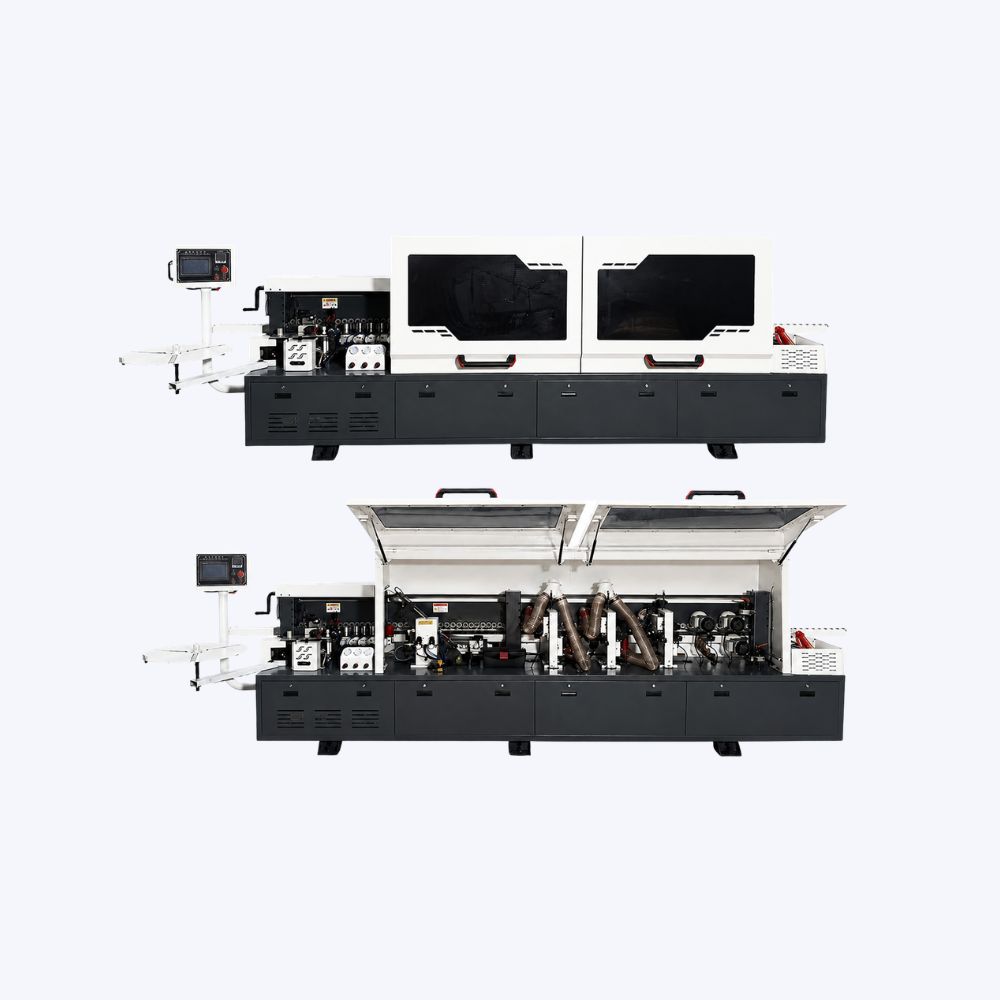

The SUN S-368 Automatic Edge Banding Machine is engineered for high-speed, precision edge finishing in modern furniture manufacturing. It performs multiple operations in a single pass, delivering smooth, durable, and professional-quality edges.
Interested in our CNC router machine?
Contact us at +91 9876543210 to schedule your CNC router machine.
About Us
Trusted CNC Router Machines Manufacturer in India
The SUN S-368 Automatic Edge Banding Machine is designed to improve production efficiency with fully automatic edge finishing. Built using a heavy-duty steel frame and premium industrial components, it ensures consistent performance, precision, and long service life.
From gluing and pressing to trimming, scraping, and polishing, the S-368 completes multiple edge banding operations in one process. It is the ideal solution for MDF, plywood, particle board, laminated panels, and modular furniture manufacturing.
All-in-One Processing
Performs automatic gluing, pressing, tape cutting, trimming, scraping, and polishing in a single production cycle for maximum efficiency.
Reliable Industrial Performance
Built with a Delta PLC control system, premium electrical components, and a rigid steel structure for stable, accurate, and long-lasting operation.
Product Specifications
| Dimensons | Description |
|---|---|
| Size | 4300×1000×1550mm |
| Air Pressure | 0.6mpa-0.8mpa |
| Bander Width | 12-60mm |
| Bander Thickness | 0.4-3mm |
| Min Process Length | 80mm |
| Min Process Width | 45mm |
| Feed Speed | 18m/20m/22m/min |
| Heating Power of Glue | 1.8kw |
| Transmission Power | 0.55kw |
| Conveyor Motor Power | 2.2kw |
| End Cutting Motor Power | 0.55kw*2 |
| Rough Trimming Motor | 0.75kw*2 |
| Fine Trimming Motor | 0.75kw*2 |
| Working Voltage | 3 Phase 380v 60 hz |
| Weight | 1800kg |
